Custom Molded Cable Assemblies
JinHai is dedicated to manufacturing precision molded cable assemblies, delivering the highest quality products and services. Molded cable assemblies are ideal for specialized applications in confined spaces and extreme conditions where standard wiring harnesses fall short.
Order your custom cable assemblies now!
Our Clients
Through high-pressure injection molding, molten particle material is die-cast, cooled, and formed according to the mold’s design. Our team provides end-to-end services from design to production, incorporating stress-relief designs at connector interfaces. Our injection-molded cable assemblies deliver robust support across diverse industries, including medical equipment, heavy industrial machinery, and automotive applications.
OEM Wiring Harness, Industry Applications
Unveiling Our Range of Custom Wire Harnesses and Components

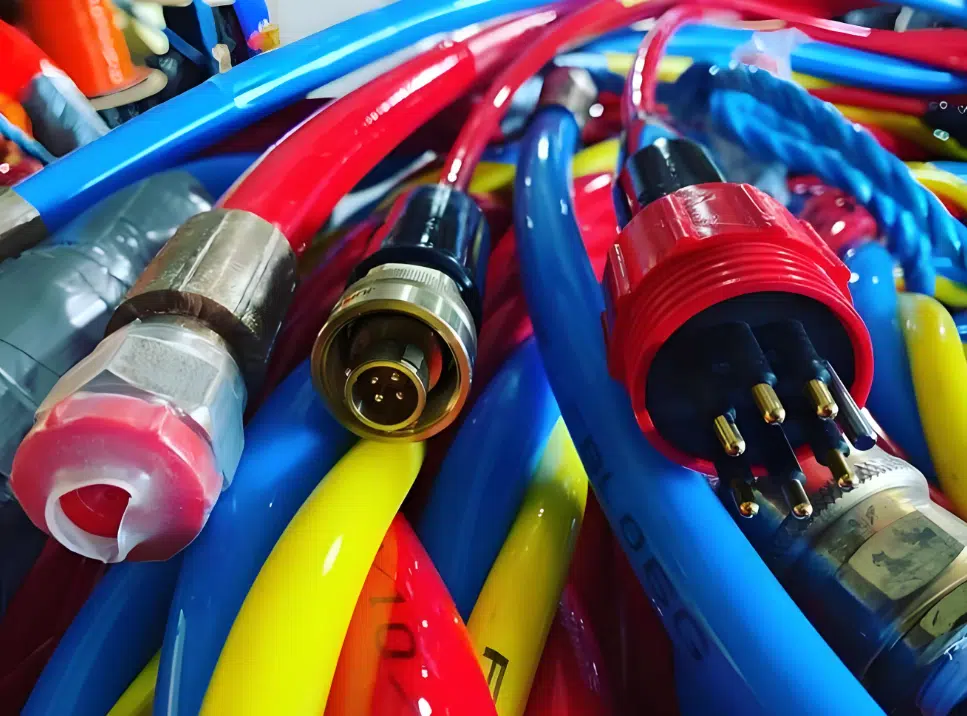

Power and data transmission cables
We offer a wide variety of connectors to choose from, meeting your specific requirements for size, space constraints, and performance.
Industry-wide M8&M12 Cable Assemblies
We utilize injection-molded M8/M12 cable assemblies to deliver reliable signal and data transmission for industrial automation systems, making them an ideal choice for Ethernet and fieldbus applications.

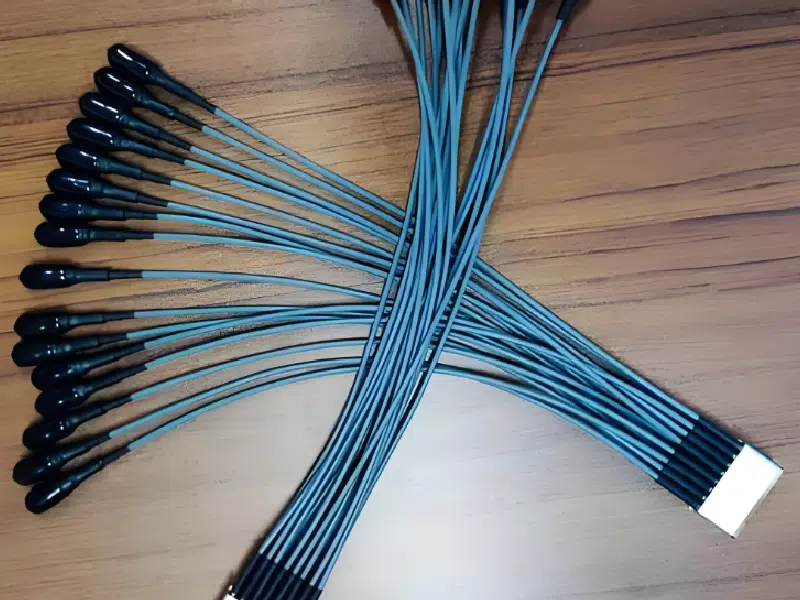

Personal&Commercial Electronic Cable Assemblies
JinHai employs sophisticated manufacturing techniques to produce a wide range of consumer electronics cable assemblies. Our multi-cavity mold design ensures a stable supply chain for large-scale commercial demands.
Forming Process for Cable Assemblies
From design to manufacturing, we maintain close collaboration with you at every stage.
Design Review Process
We will first determine a preliminary design based on the cable drawings you provide. However, during this process, we may request more detailed information to ensure the product meets your specific requirements and performance specifications.
Mold Making
Based on your product drawings, we determine whether to use a single-cavity or multi-cavity mold configuration. For customers requiring different shapes or irregular contours, we can simultaneously customize molds for multiple shapes, enabling efficient production of varied product forms. This flexibility is particularly advantageous for high-volume manufacturing. Of course, we can also optimize production processes for products with a single shape.
Material Selection
Our standard materials offer exceptional adaptability and versatility, making them an ideal choice for most applications. For special requirements involving extreme temperatures or hardness, we can also utilize other types of polyamide compounds to meet your needs.
Forming Process
We utilize fully automated injection molding equipment to deliver highly consistent, premium-quality products. From raw material heating and process parameter adjustment to final overmolding, our technicians provide comprehensive guidance throughout every manufacturing step, ensuring production accuracy and stability.
If you need custom wire harness & cables assembly manufacturer or OEM services, please choose JinHai as your manufacturer!
Submit A Quick Quote
Looking for The Best
Custom Wire Harness &
Cable Assembly Service?
Fast Turnaround Time
At JinHai, we ensure that custom wiring harness solutions are tailored to your needs, with quotations delivered within 12 hours to keep your projects on track.
Certified Quality Assurance
Our factory is ISO9001 and IATF16949 certified, guaranteeing the highest standards of quality, reliability, and compliance for all custom wiring harness and cable assembly services.
One-Stop Custom Solutions
We offer a complete, one-stop solution for all your wiring harness needs, from design to manufacturing, ensuring you get exactly what you need for your project.
Customization Options
We offer a variety of customization options, meticulously designing every detail to meet your needs.
| Connector | Cable | Materials | Characteristics | |
|---|---|---|---|---|
| Customization Options | USB, HDMI, BNC, SNA, TNC, N D-Sub (9 to 50 pins) M8/M12 Circular Connectors Molex Connectors VHDCI / SCSI Telco 25, 50, and 100 pairs (Cat 3 and Cat 5) V.35 AMP/Tyco Connectors | USB cables, coaxial cables, RF cables, I/O cables, Molex cables | Macromelt Rubber Polyvinyl Chloride (PVC) Polycarbonate (PC) Thermoplastic Polyurethane (TPU) Polyethylene (PE) Acrylonitrile Butadiene Styrene (ABS) Polypropylene (PP) etc. | Exceptional waterproof performance (compliant with IP67/IP68 standards) and abrasion resistance; Extensive library of standard molds for various common applications; Customizable branded molds featuring your logo or functional markings; Pre-molding and/or overmolding options available. |
| Capability | Special release coating ensures flawless injection molding, with potting fixtures custom-engineered to precise specifications. Potting services deliver fully waterproof sealing. Crimped and soldered joints undergo rigorous quality inspection. Every unit undergoes 100% testing. Reduces costs and streamlines shipping processes. Each production batch matches prototype specifications exactly. | |||
| Forming equipment | Industrial-grade MoldMan thermoplastic injection molding machine - for high-volume production Polyamide Macromelt OM 646 - capable of precisely heating material to 475°F according to application requirements. MoldMan injection molding machine—Delivers perfect molding with approximately 2 tons of clamping force and employs precise injection timing for consistent results. All China factories possess full production capabilities. | |||
Quality and Safety, Guaranteed
Adhering to IPC/WHMA-A-620 standards, we ensure reliability and performance in each product.
What Our Customer Say
What is the difference between single-cavity molds and multi-cavity molds?
Single-cavity molds are more suitable for manufacturing larger products. Multi-cavity molds are better suited for smaller products with higher order volumes, as a single mold can produce multiple items simultaneously. This enables rapid production, enhances manufacturing efficiency and delivery cycles, while also reducing manufacturing costs.
What is the difference between molded cable assemblies and overmolded cable assemblies?
Molded cable assemblies are manufactured by fusing cables and connectors into a single unit through injection molding, using rigid plastic or rubber materials. This construction easily withstands harsh environments and offers exceptional durability, making it ideal for industrial, agricultural, or outdoor applications—particularly in settings where moisture, dust, and physical stress are significant concerns.
Overmolded cable assemblies involve adding a protective layer over existing cables and connectors. This additional shielding enhances resistance to stresses like bending or twisting without sacrificing flexibility, making them highly suitable for dynamic applications such as robotics, medical equipment, or environments with repetitive motion.
What is the difference between potting and compression molding or overmolding?
Epoxy resins and potting compounds are liquid sealants that cure over time. They are commonly used to protect connectors from moisture exposure. Molding/overmolding involves permanently fusing materials together under high temperature and pressure, creating a highly durable structure that does not guarantee a complete seal.
What is Shore hardness? Why is it important?
In the hardness scale, Shore hardness measures the stiffness of materials such as rubber or plastic. It is crucial for component design because softer materials (lower Shore hardness) bend easily, while harder materials (higher Shore hardness) resist deformation. We will help you select the appropriate hardness grade for your application.
