Prototype Wire Harness and Cable Assembly Manufacturer
JinHai holds IATF 16949 and ISO 9001:2015 certifications, offering precise manufacturing and rapid turnaround solutions for high-performance products.
Our Clients
What is a Prototype Cable ?
Prototype cable assemblies are the first samples produced after initial design completion, used for early device interconnection and testing. They enable you to test, evaluate, and optimize your product before full-scale production. Prototype samples play a crucial role in transforming your design concepts from blueprints into tangible products.
JinHai provides prototyping services for consumer electronics, road vehicles, public lighting infrastructure, industrial machinery, and medical devices, ensuring your prototype testing delivers reliability and precision.
Advantages of Contract Manufacturing for Wiring Harnesses
Contract manufacturing services offer your business the following benefits:
Cost-Effectiveness
Labor expenses, raw material costs, administrative expenses, and operational costs—as the four core expense categories for enterprises—can all be significantly reduced through outsourcing.
Professionalism
Professional wire harness manufacturers possess extensive manufacturing experience and advanced equipment, enabling them to produce various types of wire harnesses and deliver high-quality products with greater consistency.
Delivery Cycle
The wire harness manufacturer possesses a comprehensive production infrastructure, enabling rapid fulfillment of large-volume orders to expedite product market launch.
More Options
Wire harness manufacturers can help businesses connect with more specialized manufacturers and raw material suppliers, enabling them to find materials and manufacturing capabilities that best meet their specific needs.
Flexibility
Opt for flexible approaches by partnering with multiple manufacturers equipped with production facilities capable of meeting your customization requirements.
Why Choose JinHai ?
JinHai is a company founded on the cornerstones of integrity and quality, dedicated to providing high-quality, efficient, and reliable wire harnesses and cable assemblies.
Customized Solutions
From design and raw material selection to mass production, we maintain close collaboration throughout the entire process to deliver the highest-performing wire harnesses for your needs.
Highly Experienced
JinHai has been in the wire harness industry for over 28 years. Our wire harnesses serve a wide range of sectors including home appliances, motorcycles, automobiles, industrial equipment, medical devices, and drones.
Superior Craftsmanship
Our factory is equipped with state-of-the-art machinery, ranging from desktop crimping machines to fully automated crimping systems and innovative technologies. We ensure every delivered wire harness is reliable, durable, and maintains a high level of quality consistency.
Full-Process Support
We provide comprehensive support throughout the entire manufacturing process, from initial design to after-sales service.
Quality Assurance
To ensure compliance with industry requirements, we maintain a rigorous testing and analysis system comprising numerous testing institutions, automated testing equipment, and dedicated inspection teams responsible for executing, validating, and testing all inspection procedures.
Supply Chain Advantages
We have established long-term strategic partnerships with numerous premium suppliers worldwide, including TE, MOLEX, JST, and others. This enables us to simultaneously ensure product quality and maintain low procurement costs during the purchasing process.
Unparalleled Craftsmanship
JinHai’s customized solutions meet your specifications with superior craftsmanship and technology.
Manufacturing Support:
Design support from prototype to mass production. Comprehensive solutions encompassing crimping, soldering, ultrasonic welding, cutting, marking, and more.
Assembly Service:
Wire harnesses feature markings, text, or logos and can be secured with cable ties or adhesive tape. Wire gauge, number of conductors, insulation type, and color are all customizable. To ensure consistent quality, we perform 100% functional testing and dimensional measurement.
Wiring Harness Function:
Custom solutions are employed to address challenging operating conditions such as corrosion, water immersion, dust exposure, and high temperatures.
Connector Type:
The wide variety of connector options available, such as AMP, MOLES, JST, Yazaki, THB, HL, etc.
Cover diversity:
We offer a wide range of cover materials, including PVC, heat-shrink tubing, XLPE, silicone, rubber, nylon, and braided mesh tubing.
Dimensions and Voltage:
Wire lengths can be customized to meet electrical load requirements. Based on current ratings, layout applications, and operating environments, we offer a range of wire gauges from 30 AWG to 0 AWG.
Industry Requirements:
Strictly adhere to industry requirements such as TF16949, RoHS 2.0, UL, and REACH.
Custom Wire Harness
Unveiling Our Range of Custom Wire Harnesses and Components

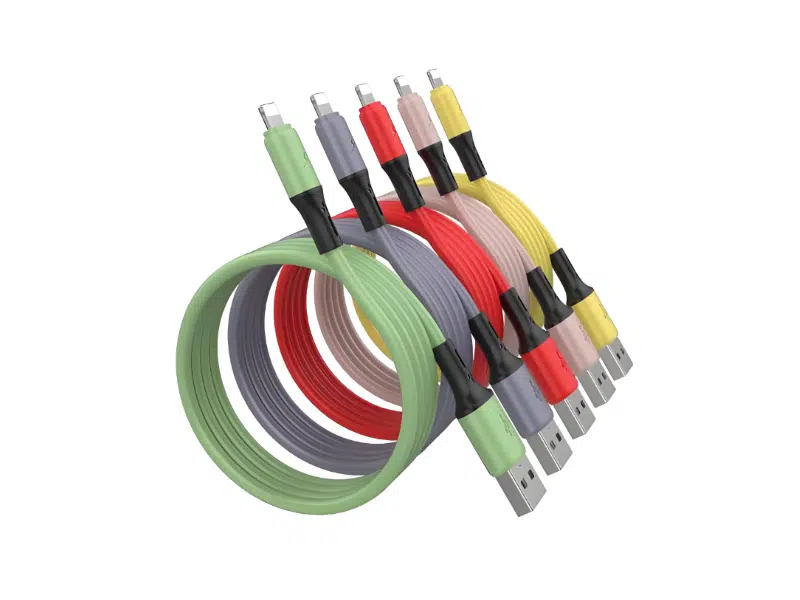

Waterproof USB Solutions
These cable assemblies consist of tinned copper stranded wire, waterproof connectors, and shielding layers, offering waterproof ratings ranging from IPX4 to IPX8. They support either direct plug-and-play or magnetic snap-on installation methods. All assemblies are rated for up to 10,000 insertion cycles. Additionally, they feature 24 pins compatible with various video and audio signal output protocols.

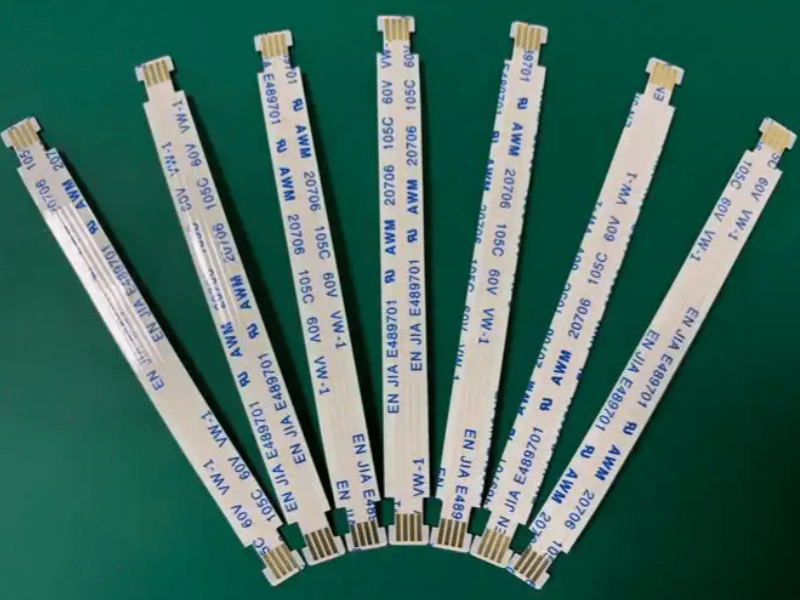

Flexible Wiring Harness Solutions
FFC cable assemblies are copper wires bonded together to form a cable, providing a wire-to-PCB connection method. This connection is particularly suitable for transmitting power or signals in dynamic environments, such as medical electronic devices, access control systems, and smart printers.

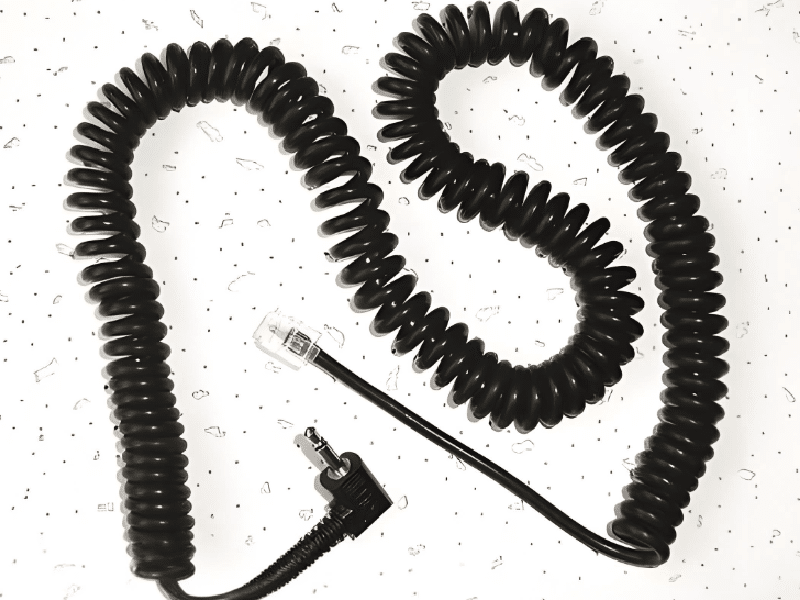

This type of cable utilizes flexible spring wire, allowing for flexible extension, retraction, and coiling. It is particularly suitable for mobile medical devices.

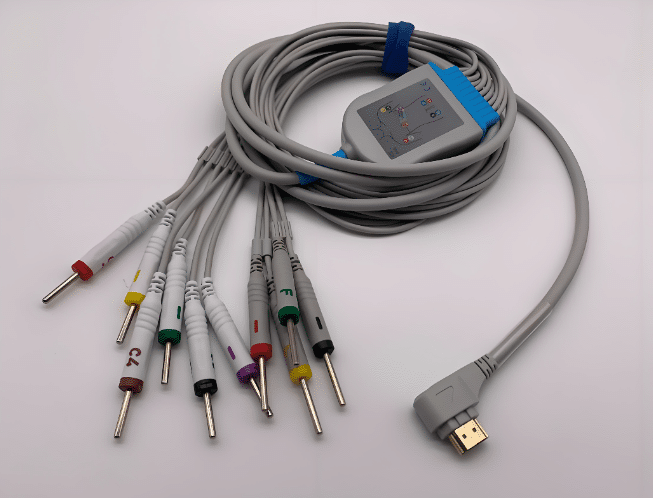

High precision, real-time performance, and interference resistance are core requirements for patient monitoring equipment. JinHai employs premium materials and precision manufacturing to ensure this wiring harness meets industry standards and your specific needs.
75-Ohm RF Cable Assembly
This type of cable assembly delivers stable high-frequency signal transmission characteristics and is primarily used in satellite television, video surveillance systems, and professional video interface transmission in studio applications.

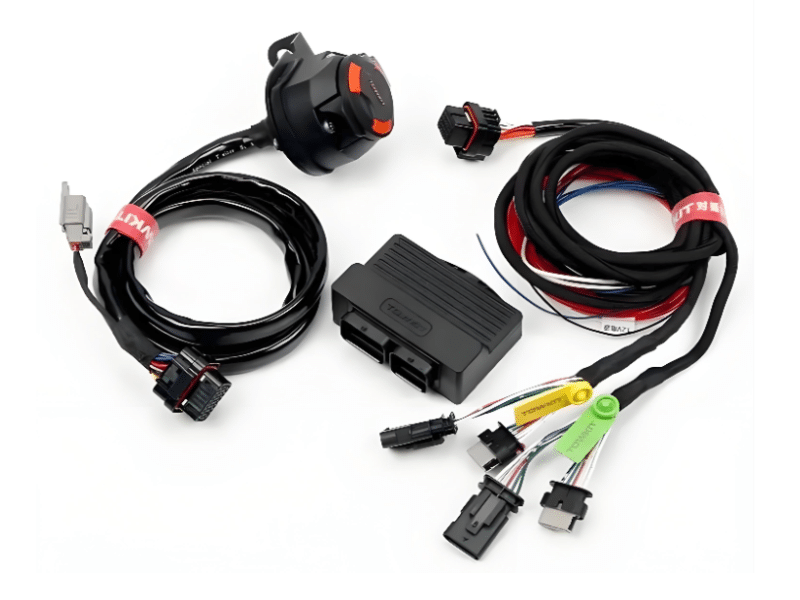

Marine Trailer Wiring Harness
It features a waterproof male connector and multiple branches, suitable for trailers ranging from standard to high-end models. JinHai also provides customized solutions for ATV trailers, flatbed trailers, and other specialized trailer applications.
Quality and Safety, Guaranteed
Adhering to IPC/WHMA-A-620 standards, we ensure reliability and performance in each product.
What Our Customer Say
What is the delivery time for custom orders?
Regarding order lead times, JinHai will clearly communicate order quantities and determine lead times based on different order volumes.
Below are the lead times JinHai can accommodate for different order quantities:
1. Small-batch custom orders (50–500 pieces): Due to the smaller order size and the need to procure many raw materials on the spot, the pre-production preparation time is longer. Therefore, the typical lead time is 2–4 weeks.
2. Large-batch custom orders (over 1,000 units): Due to the large order volume and significant raw material requirements, some materials are sourced from distributors. This necessitates adjusting allocation ratios or requires factory time for inventory checks. Therefore, the typical order cycle ranges from 8 to 20 weeks. Additionally, the cycle may extend due to special circumstances (such as shipping weather conditions or tariff fluctuations).
What types of connectors does JinHai offer?
One of JinHai’s most competitive areas:
- Automotive connectors (terminal connectors such as JST, TE, MOLEX, etc.; high-voltage connectors; high-speed data connectors; RF connectors)
- Consumer electronics connectors (board-to-board connectors; wire-to-board connectors; FPC/FFC connectors; I/O connectors; battery connectors)
- Industrial connectors (circular connectors M series, rectangular connectors Harting Han series, aviation connectors, and terminal blocks)
- Communication and data center connectors (RJ45 connectors, fiber optic connectors, and backplane connectors)
- Medical device connectors (LEMO circular connectors and various custom connectors)FAQ3：JinHai如何处理产品出现的质量问题或退货问题？
How does JinHai handle product quality issues or returns?
At JinHai, if a product experiences quality issues, we generally handle it through one of the following two methods:
- l If the product is irreparable, JinHai will directly send the customer a replacement of good quality to replace the defective item;
- If the product is repairable, JinHai will coordinate with the customer to arrange for a third-party service provider approved by the customer to handle the repair, with all associated costs borne by JinHai;
For standard orders, JinHai will provide complimentary products equivalent to 0.1% of the order value to the customer for future maintenance or replacement purposes.
